NavNet TZtouch2 Multi Function Display

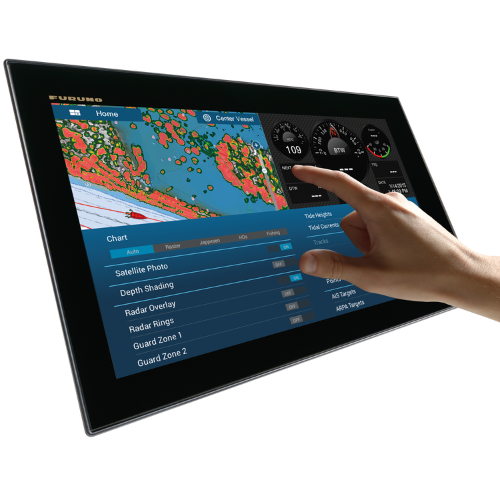

The TZTL15F is a premium 15.6" full‑wide touchscreen Multi‑Function Display (MFD) from FURUNO’s NavNet TZtouch2 line. It combines chart plotting, radar/sonar integration, GPS, and fish-finder functionality in a single unit — ideal for marine navigation, fishing, and vessel control systems.
Product Details
FEATURES

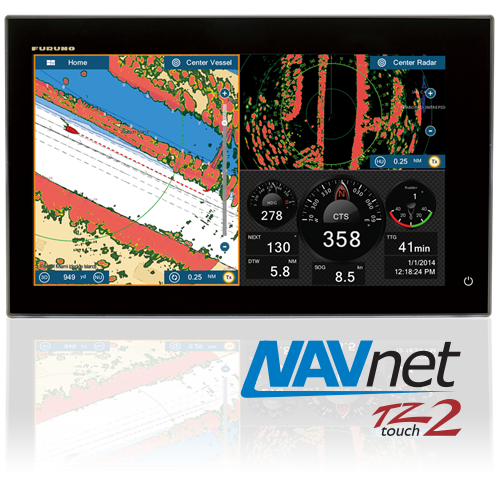

NavNet TZtouch2 Multi Function Display – TZTL15F
1. All‑in‑One Navigation & Fish‑Finding Console: Includes chart plotter, GPS receiver, built-in fish finder (dual-frequency 50/200 kHz), radar overlay, and sonar — enabling navigation, route plotting, depth sounding, and fish detection from a single screen.
2. Intuitive Multi‑Touch Interface: Large 15.6" full‑wide TFT color touch LCD (1366×768) with multi-touch gestures (tap, swipe, pinch) ensures easy, smartphone-like operation, making system control user-friendly and efficient.
3. Advanced Fish Finder with RezBoost & Bottom Discrimination: Built-in 50/200 kHz (600 W or 1 kW) sounder supports FURUNO’s RezBoost digital signal processing for high target resolution, plus bottom discrimination and AccuFish modes — ideal for fishing and seabed mapping.
4. Integrated GPS & Chart Plotting: Internal 56‑channel GPS + SBAS antenna ensures reliable positioning. Chart plotting supports up to 200 routes × 500 waypoints and 30,000 track points, providing comprehensive navigation and voyage planning.
5. Full Network & Sensor Integration: Supports integration with radar, AIS, autopilot, external instruments, cameras, NMEA 2000 / NMEA0183, and other networked marine devices — allowing a complete integrated navigation and monitoring system
SPECIFICATION
| Display Size | 15.6" full‑wide TFT color LCD |
| Resolution | 1366 × 768 (FWXGA) |
| Brightness | ~1100 cd/m² |
| Built-in GPS | 56‑channel GPS + SBAS (WAAS / MSAS / EGNOS) |
| Chart Memory / Capacity | Up to 200 routes (500 waypoints each), 30,000 track points, 30,000 MOB/points, ARPA 30 targets, AIS 100 targets |
| Sounder / Fish Finder | Dual-frequency 50 / 200 kHz, 600 W or 1 kW (with matching box) |
| Network Interfaces | NMEA 2000, NMEA 0183, LAN, USB, video I/O (NTSC/PAL, HDMI) |
| Power Supply | 12–24 V DC |
| Waterproof / Protection | IP56 rated (suitable for marine environments) |
