Product Information

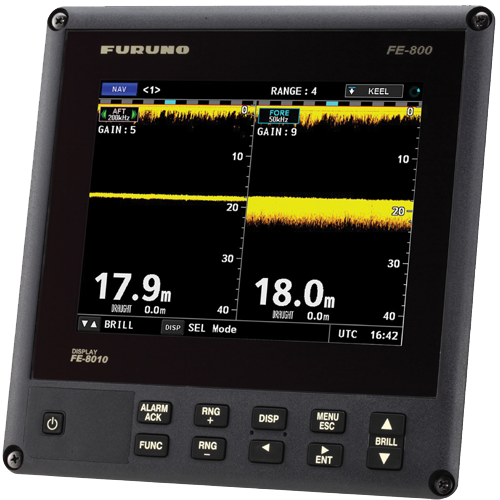

Navigational Echo Sounder
Model
FE-800
The FE-800 is a high-quality marine echo sounder designed to measure water depth beneath a vessel, providing reliable bottom clearance information. With dual-frequency capability and a clear 8.4″ color LCD, it is ideal for safe navigation, especially in shallow or variable-depth waters.
Product Details
FEATURES
Navigational Echo Sounder
- Dual-Frequency Depth Measurement: Operates on 50 kHz and 200 kHz frequencies — allowing accurate depth measurement at different water conditions, with the option to display both fore and aft depth readings when using two transducers.
- Multiple Display Modes & Data History: Provides NAV mode (real-time depth echo), OS DATA mode (depth + own-ship data when connected to GPS/EPFS), and HISTORY mode (stores and displays depth history up to 24 hours).
- High-Contrast 8.4" Color Display: 8.4-inch color LCD ensures clear readability; echo with adjustable color schemes enhances visibility in various lighting conditions.
- Alarm & Safety Functions: Generates visual and audible alarms when water depth falls below a preset threshold — critical for avoiding groundings or underwater hazards.
- Data Recording & External Interfaces: Stores up to 24 hours of depth data (with 5-sec recording interval), supports optional printer or PC connection for logging, printing, and playback of echograms. Compatible with external displays (e.g. remote units) and standard marine communication protocols.
SPECIFICATION
| Frequency | 50 kHz / 200 kHz dual-frequency |
| Output Power | 1 kW RMS |
| Depth Range (max) | Up to 800 m (scale selectable: 5, 10, 20, 40, 100, 200, 400, 800 m) |
| Minimum Range | 2 m (50 kHz), 1 m (200 kHz) |
| Accuracy | ± 0.5 m at 20 m range; ± 5 m at 200 m range (or 2.5% of depth) |
| Display | 8.4" high-contrast color LCD |
| Display Modes | NAV, OS DATA, HISTORY, Logbook, Alert Log |
| Data Storage | Up to 24 hours history (at 5-sec intervals) |
| Interfaces | IEC 61162-1, IEC 61162-450 (LAN), RS-232, optional printer/PC |
| Alerts | Shallow depth alarm, seabed lost alarm, power-failure alert (with external alarm device) |
| Power Supply | 100 – 230 V AC (or as appropriate for vessel power) |
